1000W Laser Cutting System 30m/Min Laser Cutting Machine

Technical Class : Continuous Wave Laser

Transport Package : Wooden Pallet

Model NO. : HBS-LCT600

Specification : 1400*1700*1760mm

MOQ : 1 Set

Price : US $50,000-90,000

Laser Classification : Solid Laser

Laser Power : 500W/800W/1000W/1500W

Weight of Basic Machine : 1200kg

Laser Technology : Laser Vapor Cutting

Positioning Accuracy : 0.02mm

Repetitive Positioning Accuracy : 0.005mm

Trademark : HBS

Applicable Material : Metal

Laser Brands : Feibo / Raycus / Ipg

Working Area : 600*600mm

Power Consumption : 7kw/6.5kw/6kw/5.5kw

Laser Source : Fiber

CNC or Not : Yes (Japanese Linear Motor)

HS Code : 84561000

Structure Type : Gantry Type

Origin : China

Max. Cutting Speed : 30m/Min

Production Capacity : 100PCS/Year

Contact Now

Overview

1000W Laser Cutting System / Laser Cutting Machine is specially designed for cutting small parts in both lab testing and industrial environments. Using high-speed linear motors with marble platform gives our laser cutter the stability and acceleration needed for high-speed precision cutting. Utilizing the world top class fiber laser source, our laser cutting machine can ensure you of the best quality. Working on a variety of materials including steel, aluminum, brass, copper, titanium and alloys, our laser cutting machine provides extraordinary cutting performance and reliability.

Features
  • Fiber Laser High Efficiency and Low Operating Costs
  • Highly Stable Granite Structure
  • High-Speed Linear Motor for Faster Cutting Speed and High Precision
  • Compact Design to Reduce Facility Cost
  • Wide Range of Laser Power Selection to Reduce Your Purchasing Cost
  • Fully Enclosed System Meet CE & FDA Standards
  • Auto Stop Protection: When Cutting Head Detect Collision Between the Cutting Head and the Tilted Parts
  • Available Assist Gases for Cutting Different Materials
Specifications
Laser Brands Feibo / Raycus / IPG
Laser Source Fiber
Laser Wavelength 1064nm
Laser Power 500W/800W/1000W/1500W
Max. Cutting Speed 30m/min
CNC or not Yes (Japanese Linear Motor)
Working Area 500*500mm
Power Supply Single-Phase 220V / 3-Phase 380V (Depending on the laser source)
Positioning Accuracy ±0.02mm
Repetitive Positioning Accuracy ±0.005mm
Power Consumption 7kw/6.5kw/6kw/5.5kw
Cooling Method Water Cooling
Weight of Basic Machine 1200KG
Machine Dimension(L*W*H) 1400*1700*1760mm
Assist Gases Oxygen, Nitrogen, Compressed Air
Processable Materials Stainless steel, Carbon steel, Mild steel, Alloy steel, Silicon steel, Spring steel, Aluminum, Aluminum alloy, Galvanized sheet metal, Aluminum-zinc coated sheet metal, pickling metal, Copper, Brass, Silver, Gold, Titanium and other metals.
After-sales Service Provided Engineers available to service machinery overseas

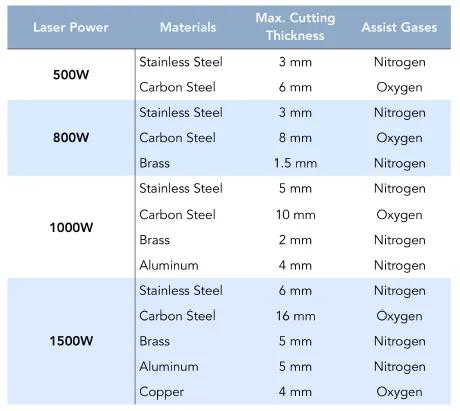

Max. material thicknesses
1000W Laser Cutting System 30m/Min Laser Cutting Machine
Samples
1000W Laser Cutting System 30m/Min Laser Cutting Machine
Contact
1000W Laser Cutting System 30m/Min Laser Cutting Machine
